M Series Articulating Borescope
M Series Articulating Borescope

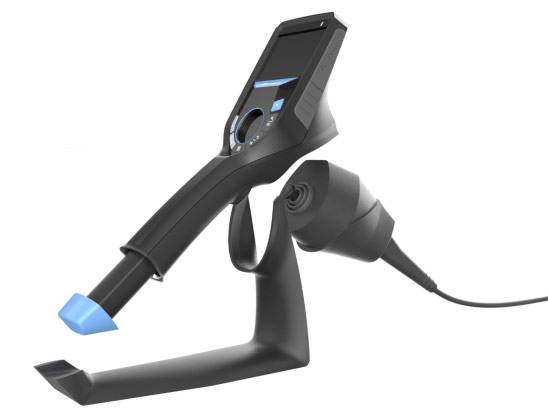

The Yateks M Series Articulating Borescope is a portable industrial videoscope designed for quick and efficient remote visual inspections. Featuring 360° mechanical articulation, it allows easy navigation through complex internal components for accurate defect detection. With interchangeable insertion tubes that work with the same main unit, the M Series offers flexibility, cost-effectiveness, and reliable performance for a wide range of industrial inspection and maintenance applications.
Technical Advantages
- Interchangeable insertion tubes with different diameters, lengths, and camera modules for maximum flexibility and cost savings.
- Removable host and support base for convenient desktop operation and fixed-position use.
- 360° mechanical articulation with up to 180° bending for flexible and precise inspection.
Technical Specifications
System Specifications
| Specification | Details |
|---|---|
| Dimensions / Weight | 315 × 111 × 173 mm / 0.75 kg |
| Display Screen | 3.5-inch TFT LCD (640 × 480 resolution) |
| Articulation | Mechanical joystick with 360° probe articulation |
| Functions | Photography, Video Recording, Brightness Control, Menu, Image Zoom In/Out, Image Freeze, Image Flip |
| Storage | 16 GB (Expandable up to 32 GB) |
| I/O Ports | SD Card Slot, Headset Interface, TV-OUT Interface, Micro USB (Charging & Data Transfer) |
| Battery / Standby Time | 1 × 18650 Li-ion Battery / Up to 4 Hours |
| Brightness Control | 6-Level Brightness Adjustment |
