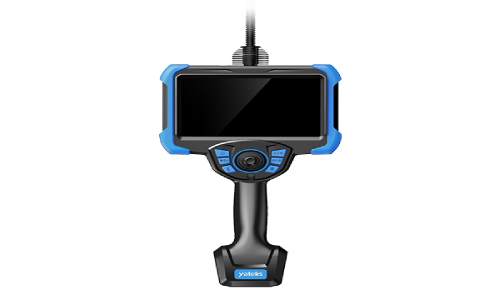

Realta 3D Measurement Borescope
Realta 3D Measurement Borescope for Accurate Defect Analysis
The Realta 3D Measurement Borescope is designed to deliver precise three-dimensional measurement and high-definition visual inspection for demanding industrial applications. Equipped with advanced 3D imaging technology, it accurately measures cracks, corrosion, pits, dents, gaps, and other surface defects without disassembling equipment.
Technical Advantages

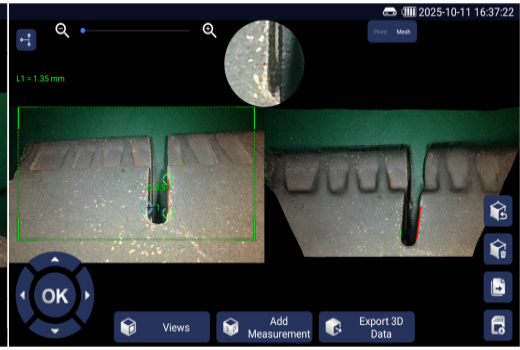

- Manipulate the point cloud model by scaling and rotating for multi-angle review.

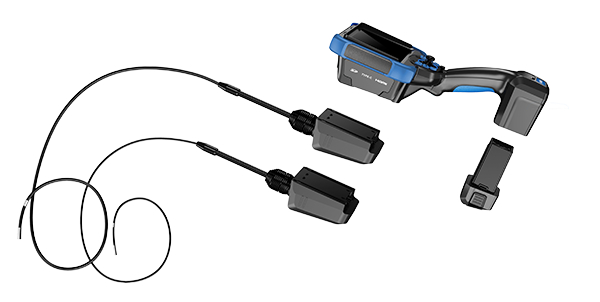

- Modular design, can be quickly disassembled and replaced
- The device delivers easy and intuitive operation, thanks to its intelligent operating system and streamlined interface.
- Good connectivity and expandability
- Durable & Replaceable Video Probes
Technical Specifications
System Specifications
| Specification | Details |
|---|---|
| Product Dimensions | 364 mm × 198.5 mm × 132.5 mm |
| Weight | < 2 kg (2 m) |
| Display Screen | 7" IPS Industrial HD Touch LCD, 1920 × 1080 (16:9) |
| Main Functions |
Photo, Video, Light Source Brightness Adjustment, Screen Brightness Adjustment, Zoom In/Out, Screen Flip, Color Inversion, Screen Freeze, Color Mode Adjustment, Aspect Ratio, Grid Measurement, Automatic White Balance, Image Browsing, Lock Fine-Tuning, Menu |
| Joystick Control | Motorized Joystick with 360° Rotation |
| Steering Control | Automatic Setting with Adjustable Direction Fine-Tuning |
| Memory | Built-in 128 GB + 64 GB USB Flash Drive Expansion (Supports up to 256 GB) |
| Data I/O Ports | 2 × USB 2.0 Host Type-A Ports, Type-C Port, Headset Port |
| Video Output | Mini HDMI Interface, Wi-Fi Interface |
| Battery Type | Removable, Independently Rechargeable Battery Pack |
| Battery Backup | ≥ 4 Hours |
| Operating Mode | The host and probe can be used separately. One host supports multiple probes. |
