LEEB Hardness Tester
LEEB Hardness Tester for Portable Material Testing

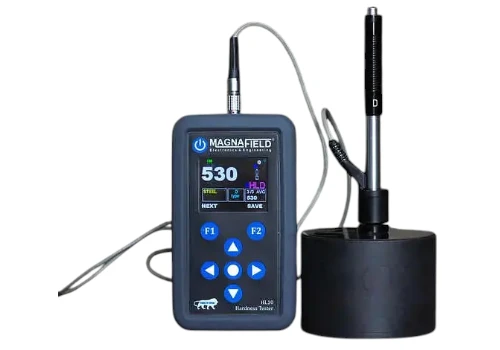

The Magnafield Leeb Hardness Tester is designed for fast, reliable, and non-destructive hardness measurement of metallic materials in workshops, manufacturing plants, and field applications. Utilizing the Leeb rebound testing method, it provides accurate hardness values with quick response times and easy operation.
Featuring a large TFT color display, six interchangeable impact devices, and a portable handheld design, the tester supports multiple hardness scales including HL, HRC, HV, HB, and MPa, with built-in conversion to tensile strength. It can test at any angle, even upside down, and covers a wide measuring range, making it ideal for quality control, maintenance, and inspection of large or installed components where conventional testing methods are impractical.
Technical Specifications
| Specification | Details |
|---|---|
| Measuring Range | (190–900) HLD; (1.0–69.5) HRC |
| Hardness Scale | HL, HRC, HB, HV, HRB, MPa |
| Measuring Direction | Any Direction 360° |
| Tolerance | ±6 HLD (when HLD = 760 ±30) |
| Repeatability | 6 HLD (when HLD = 760 ±30) |
| Standard | ASTM A 956 |
| Power | Rechargeable AA battery ×3 |
| Charging Time | 3–4 Hours |
| Battery Life Approx | 2–3 hours (rechargeable) |
| Dimensions (mm) | 142 × 82 × 35 |
| Weight (grams) | 230 (Without probe and batteries) |
| Set Includes | Main unit, D type probe, AA batteries ×3, charger, carry case & standard hardness test block |
